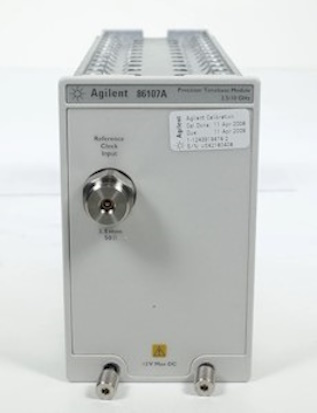

Keysight 86107A Precision Timebase Reference Plug-in Module

The Keysight 86107A represents one of the most significant improvements in wide-bandwidth sampling oscilloscopes in over a decade. Jitter performance has been reduced by almost an order of magnitude to 200 fs RMS. Timebase resolution has also been improved from 10 ps/division to 2 ps/division, a 5 times improvement.

Key Features & Specifications

Input signal

• Type: synchronous clock, square wave to sine wave shape
• Characteristic levels: 0.2 - 1.5Vpp
• Trigger range: 2 to 48 GHz (depends on options)
• Electrical Input: 3.5 mm male (2.4 mm male for frequencies > 25 GHz BW)

Timebase Jitter

• < 200 fs rms (for frequencies > 4 GHz)
• < 280 fs rms (for frequencies < 4 GHz)

Options:
010 = 2.5 GHz and 10 GHz clock input capability
020 = 10 GHz and 20 GHz clock input capability
021 = DC blocking capacitor, 45 MHz - 26.5 GHz
040 = 10, 20 and 40 GHz clock input capability
UK6 = Commercial calibration certificate with test data
