제품명

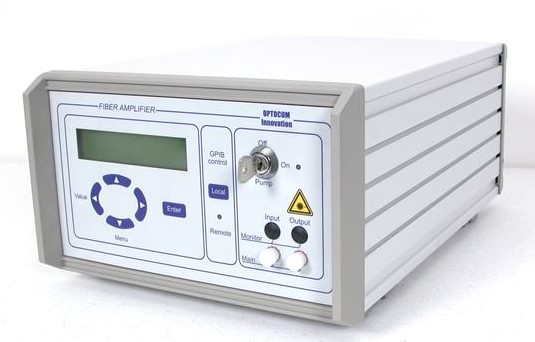

C-Band Fiber Amplifier
제조사
OPTOCOM,KEOPSYS
모델
OI-BT-C-10
가격
문의요
렌탈
문의요
첨부파일
상세내용
Features
- Operating Band: C band
- Wavelength Range: 1529 to 1562 nm
- Output Power: 10 dBm
- Optical Input Power: from -15 to +0 dBm
- Noise Figure: < 5.0 dB
- Gain Flatness: < 1.5 dB
- Polarization Dependent Gain: < 0.5 dB
- Polarization Mode Dispersion: < 1 ps
- Return Loss: < -40 dB
- Connector Type: FC
- GPIB, RS-232 Interface
