제품명

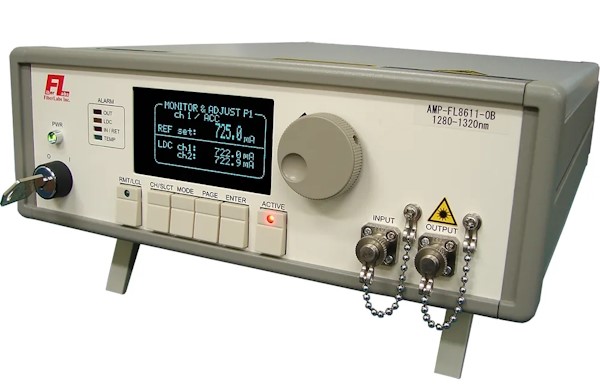

O-band Optical Amplifier
제조사
FIBERLAB
모델
AMP-FL8611-OB
가격
문의요
렌탈
문의요
첨부파일
상세내용
FEATURES
- Best performing O-band Fiber Amplifier in Market
- Proven Reliability by Actual Network Deploymnet
- High Gain and Low NF
- Turn-Key Operation
- RS-232C and GP-IB
APPLICATIONS
- Laboratory Use
- Test and Measurement
- Integration in System
MAIN SPECS
Product Number | Operating | Nominal | Output | Gain | NF | IN/OUT | Standard | IN/OUT | Std. Dimension |
|---|---|---|---|---|---|---|---|---|---|
AMP-FL8611-OB-10 | 1280 to 1320 | 1310 | ≥ +10 | ≥ 10 | ≤ 7 | SMF (*4) | FC/PC | Built In | 88 x 260 x 350 |
AMP-FL8611-OB-13 | 1280 to 1320 | 1310 | ≥ +13 | ≥ 15 | ≤ 7 | SMF (*4) | FC/PC | Built In | 88 x 260 x 350 |
AMP-FL8611-OB-16 | 1280 to 1320 | 1310 | ≥ +16 | ≥ 20 | ≤ 7 | SMF (*4) | FC/PC | Built In | 88 x 260 x 350 |
AMP-FL8611-OB-20 | 1280 to 1320 | 1310 | ≥ +20 | ≥ 35 | ≤ 7 | SMF (*4) | FC/PC | Built In | 88 x 440 x 350 |
AMP-FL8612-OB-23 | 1280 to 1320 | 1310 | ≥ +23 | ≥ 35 | ≤ 7 | SMF (*4) | FC/PC | Built In | 88 x 430 x 350 |
