C-Band Optical Fiber Amplifier > Products

Products

페이지 정보

본문

제품명

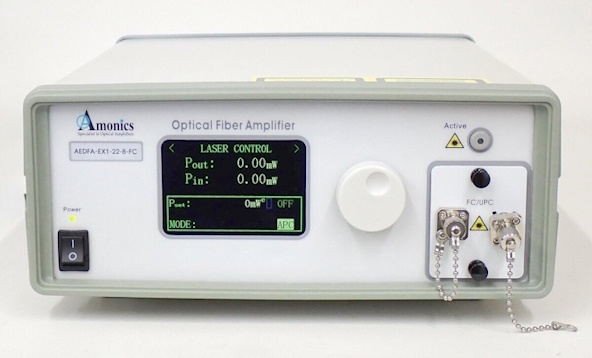

C-Band Optical Fiber Amplifier

제조사

AMONICS

모델

AEDFA-EX1-22-B-FC

가격

문의요(재고유)

렌탈

문의요

첨부파일

상세내용


Specifications

AEDFA-L-DWDMAEDFA-L-EX1-DWDMAEDFA-L-EX2-DWDMRemarks
Saturation Output Power+22 dBm+22 dBm+22 dBm
Wavelength1570 to 1603 nm1570 to 1610 nm1570 to 1620 nm
Gain (dB)21, 2521, 2521, 25 dBInput Power (dBm): +1, -3
Noise FigureTyp. 6.0 dB, Max. 6.5 dBTyp. 6.5 dB, Max. 7.0 dBTyp. 6.5 dB, Max. 7.5 dB
Gain Flatness (peak to peak)Typ. 1.0 dB, Max. 2.0 dBTyp. 1.5 dB, Max. 2.0 dBTyp. 1.5 dB, Max. 2.0 dB
Input & Output IsolationMin. 30 dBMin. 30 dBMin. 30 dB
Polarization Dependent GainTyp. 0.3 dB, Max. 0.5 dBTyp. 0.3 dB, Max. 0.5 dBTyp. 0.3 dB, Max. 0.5 dB
Control ModeACC, APC, AGC (optional)ACC, APC, AGC (optional)ACC, APC, AGC (optional)
