850nm-band Optical Amplifier > Products

Products

페이지 정보

본문

제품명

850nm-band Optical Amplifier

제조사

FIBER LAB

모델

AMP-FL8401

가격

문의요(재고유)

렌탈

문의요

상세내용

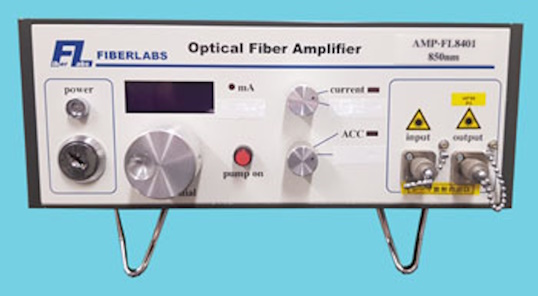

The AMP-FL8401 is optical fiber amplifier utilizing fluoride fiber technologies. It is the optical fiber amplifier which amplified the difficult signal of 850nm band for the first time in the world.

■ Features



Novel signal wavelength(850~856nm)
With output isolater
Easy monitoring of pump current

■ Applications

Test & measurement
Scientific applications
Lab applications

■ Standard Specifications

 Item

AMP-FL8401

 Signal Wavelength

853 +/-3nm

 Gain(small signal) *1

>20dB

 Amplifier control

ACC

 Output Fibers

SMF (850nm Band)

 Optical Connectors

FC/PC

 Operating Temperature

0 ~ 40 °C

 Storage Temperature

-10 ~ 60 °C

 Size *2

88(H) x 260(W) x 350(D) (mm)

 Weight

4 Kg

 Power supply

AC 100 ~ 240V (50/60Hz)
