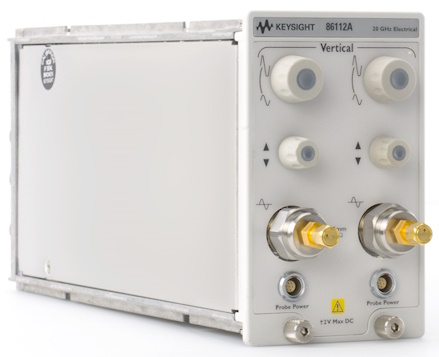

The Agilent 86112A Plug-In module is compatible with Agilent DCA Mainframes 86100x Series. The 86112A wavelength range is 750-860 nm and consist of one 20 Ghz electrical channel and no optical channel.

Specifications of 86112A

• Electrical channel bandwidth: 12.4 and 20 GHz
• Transition time for 12.4 GHz: 28.2 ps
• Transition time for 20 GHz: 17.5 ps
• RMS noise 12.4 GHz: 0.25 mV (characteristic)
• RMS noise 20 GHz: 0.5 mV (maximum)
• Minimum scale factor per division: 1 mV/division
• Maximum scale factor per division: 100 mV/division
• DC accuracy, single marker: +/- 0.4% of full scale
• Maximum input signal: +/- 2 V (+16 dBm)
• Electrical input: 3.5 mm (male)
