제품명

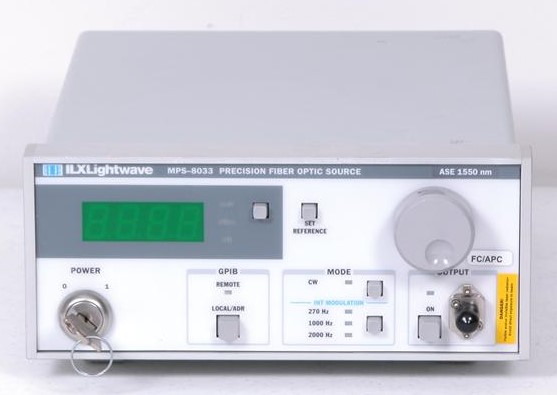

Precision Fiber Optic Source
제조사
ILX Lightwave
모델
MPS-8033
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
Wavelength (nm): 1510 nm
Wavelength Accuracy:
Options /03 - /06: ±20 nm
WDM Options: ±0.10 nm
Output Power: 3 dBm
Power Stability(15 min.): ±0.005 dB
Power Stability(24 hr.): ±0.030 dB
Thermal Stability: 0.2 dB
Optical Connector: FC type
Fiber Type: SMF
GPIB
Features
- GPIB Interface
- High Stability: ±0.005 dB Over 15 min
- Low Wavelength Drift
- Operate in CW Mode or Internally Modulated Mode
Description
The MPS-8033 series of Fiber Optic Sources are microprocessor controlled laser diode sources, capable of providing power at user-specified wavelengths including WDM C-Band and L-Band wavelengths. Designed for component testing, power meter calibration, and general laboratory use, the MPS-8033 utilizes proven precision laser diode temperature and current control electronics technology developed by ILX Lightwave. Plus, each MPS-8033 comes equipped with a standard GPIB remote interface for easy incorporation into production automated test system or computer controlled laboratory test. The MPS-8033 offers extremely high stability — better than ±0.005 dB over 15 minutes and ±0.03 dB over 24 hours, 12 hours for ASE Models. Precise internal laser diode temperature control ensures low wavelength drift. The MPS-8033 series provides the user with two laser operating modes, CW and modulated. Internal modulation frequencies 270 Hz, 1 kHz and 2 kHz are selectable from the front panel and 160 Hz to 15 kHz through GPIB interface.
