제품명

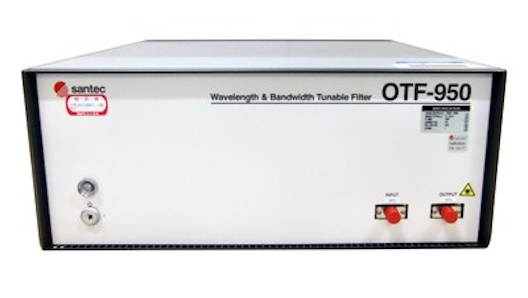

Optical Tunable Filter
제조사
Santec
모델
OTF-950
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
The OTF-950 is a versatile bench-top optical tunable filter that allows both wavelength tuning and passband width selection simultaneously and independently. Unique precision free-space optics and an accurate tuning mechanism deliver excellent optical control and a flat-top passband shape. The setting of wavelength and the bandwidth can be automated and be operated remotely by the GPIB interface.
Features
* OTF-950Center wavelength adjustment & bandwidth tuning independently
* Flat-top filter shape (High figure of merit)
* Wavelength range: 1530 – 1610 nm, tunable in 40 nm
* Bandwidth adjustable range: 0.18～6.0nm
* Supporting LabVIEW control software
Applications
* 40Gb/s , 100Gb/s transmission test
* WDM wavelength tuning
* ASE noise filtering
* Next generation bundle wavelength OXC
* Pulse shaping
* Flexible test and measurement
Specifications
Parameter | Unit | Min. | Typ. | Max. |
Wavelength Tuning Range | nm | 40 |
|
|
Bandwidth Tuning @-3dB | nm | 0.18 |
| 6.0 |
Bandwidth Tuning @-20dB | nm | 0.5 |
| 6.5 |
Wavelength Accuracy | nm |
| ±0.4 |
|
Insertion Loss | dB |
| 5 |
|
Insertion Loss Uniformity | dB |
| 0.5 |
|
PDL | dB |
| 0.25 |
|
PMD | ps |
| 0.5 |
|
Chromatic Dispersion | ps/nm |
| ±10 |
|
Return Loss | dB |
| 45 |
|
