제품명

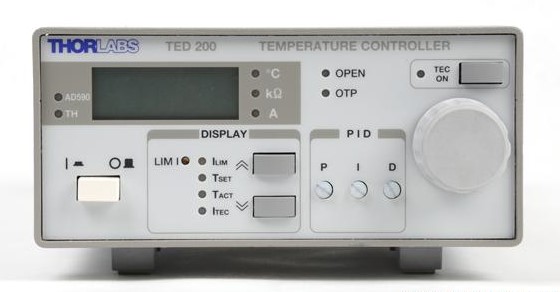

Laser Diode Temperature Controllers
제조사
Thorlabs
모델
TED200
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
Features
- Compatible Sensors: Thermistors, AD590/AD592, LM335
- TEC Output (Low Noise): ± 2 A / 12 W
- Temperature Range from -45 °C to +145 °C (AD590) or 10 Ω to 200 kΩ (Thermistor)
- Temperature Resolution: 0.01 °C (IC-Sensor) or 1 Ω (Thermistor)
- Temperature Stability: ≤ 0.002 °C
- Separate Adjustment of the P, I and D Share of the Control Loop for Shortest Temperature Settling Time
- Constant Temperature Operating Mode
- Analog Control via the TUNE IN Input
- Adjustable TEC Current Limit
- Detection of Incorrect or Missing Temperature Sensor and Open TEC Connection
- RoHS Compliant
Applications
- Precise Stabilization of Laser Diodes for Use in Interferometry and Spectroscopy
- Cooling of Detectors for Noise Reduction
- Temperature Stabilization of Non-linear Crystals
- Temperature Stabilization of Industrial Systems
- Control Temperature Set Point via External Input for Active Stabilization of Laser Wavelength
Model | TED200C |
|---|---|
TEC Current Output | |
Control Range | -2 A to 2 A |
Compliance Voltage | >6 V |
Maximum Output Power | 12 W |
Measurement Resolution | 1 mA |
Accuracy | ±10 mA |
Noise and Ripple (typ.) | <1 mA |
TEC Current Limit | |
Setting Range | 0 to >2 A |
Measurement Resolution | 1 mA |
Accuracy | ±20 mA |
Thermistor Sensorsa | |
Control Range | 10 Ω to 20 kΩ / 100 Ω to 200 kΩ (2 Ranges) |
Setting Resolution | 1 Ω / 10 Ω |
Measurement Resolution | 1 Ω / 10 Ω |
Accuracy (20 kΩ / 200 kΩ Range) | ±10 Ω / ±100 Ω |
Temperature Stability (24 Hours)b | <0.5 Ω / <5 Ω |
IC Sensors | |
Supported Sensors | AD590, AD592, LM135, LM335 |
Control Range with AD590, LM135 | -45 °C to 145 °C |
Control Range with AD592 | -25 °C to 105 °C |
Control Range with LM335 | -40 °C to 100 °C |
Setting Resolution | 0.01 °C |
Measurement Resolution | 0.01 °C |
Accuracy (Except LM335) | ±0.1 °C |
) | <0.002 °C |
Temperature Control Input | |
Input Resistance | 10 kΩ |
Control Voltage | -10 V to +10 V |
Transmission Coefficient Thermistor | 2 kΩ/V / 20 kΩ/V ± 5% |
Transmission Coefficient IC-Sensors | 20°C/V ± 5% |
Temperature Control Output | |
Load Resistance | >10 kΩ |
Transmission Coefficient Thermistor | 500 mV/kΩ / 50 mV/kΩ ± 5% |
Transmission Coefficient IC-Sensors | 50 mV/°C ± 5% |
General Data | |
Safety Features | TEC Current Limit, Short Circuit When TEC Off, No Sensor Protection, Open Circuit Detection, Over Temperature Protection |
Display | LED, 5 Digits |
Connector for Sensor, TE Cooler, TEC On Signal | 15-Pin D-Sub Jack |
Connectors for Control Input / Output | BNC |
Chassis Ground Connector | 4 mm Banana Jack |
Line Voltage / Frequency | 100 V, 115 V, 230 V +15% -10% Each / 50 to 60 Hz |
Maximum Power Consumption | 60 W |
Mains Supply Overvoltage | Category II (Cat II) |
Operating Temperature | 0 to 40 °C |
Storage Temperature | -40 to 70 °C |
Relative Humidity | Max. 80% Up to 31 °C, Decreasing to 50% at 40 °C |
Pollution Degree (Indoor Use Only) | 2 |
Operation Altitude | <2000 m |
Warm-up Time for Rated Accuracy | 10 min |
Weight | <3.1 kg |
Dimensions (W x H x D) without Operating Elements | 146 mm x 66 mm x 290 mm |
Dimensions (W x H x D) with Operating Elements | 146 mm x 77 mm x 320 mm |
