제품명
Optical Sampling Module
제조사
TEKTRONIX
모델
80C08C
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용

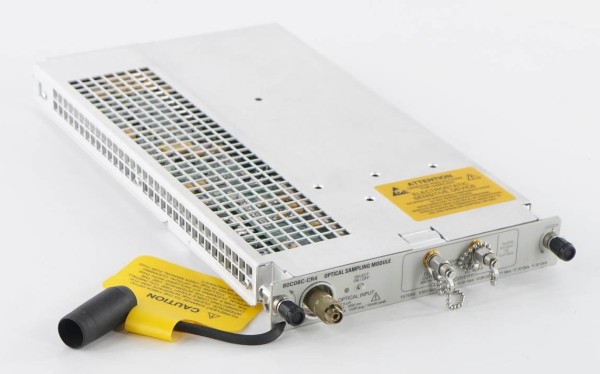

The 80C08C module is a broad wavelength (700 to 1650 nm) multirate optical sampling module providing datacom ratetesting for 10GbE, 40GbE-R4, 100GbE-SR10 applications at 9.953, 10.3125, 11.0957 Gb/s and 10G Fibre Channel applications at 10.51875 Gb/s and 11.317 Gb/s. The 80C08C also provides telecom rate testing at 9.953, 10.664, and 10.709 Gb/s.
With its amplified O/E converter design, this module provides excellent signal-to-noise performance and high optical sensitivity, allowing users to examine low power level optical signals. The 80C08C can be optionally configured with clock recovery options that can support any standard or user-defined rate in the continuous range from 9.8 to 12.6 Gb/s.
