제품명

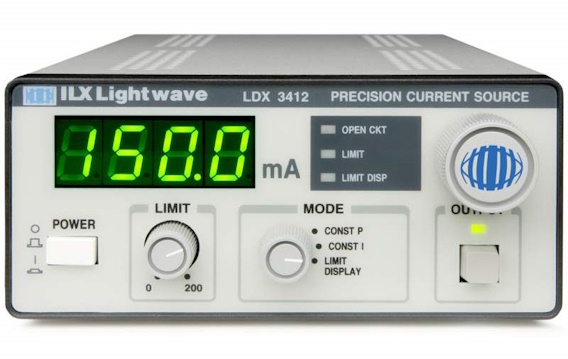

Low Cost Laser Diode Driver
제조사
ILX Lightwave
모델
LDX-3412
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
- Low cost 0 - 200 mA laser diode driver
- Versatile control: constant current and constant power modes
- Laser diode protection
- Fully independent, precision current limit control
- Easy connection to lasers and LEDsDriver Output CurrentOutput
Driver Output Current | |
|---|---|
Output Current Range (mA) | 0-200 |
Laser Output Compliance Voltage (V) | 0-6.0 |
Temperature Coefficient (ppm/°C) | 100 |
Current Output Short-Term Stability (1 h) (ppm) | <50 |
Laser Output Noise/Ripple (rms) Lo BWCW Mode (µA) | 2 |
Transients (µA) | <100 |
Driver Current Limit Settings | |
Range (mA) | 1-200 |
Accuracy (mA) | ±3 |
Photodiode Feedback | |
Photodiode Reverse Bias (V) | 0-5 |
Monitor Current Range (µA) | 20-2000 |
Stability | ±0.1% |
Measurement Display | |
Display Type | 3.5 digit Green LED |
MD Output Current Range (mA) | 0-199.9 |
Output Current Accuracy (mA) | ±0.2 |
