제품명
Temperature Controller
제조사
ILX Lightwave
모델
LDT-5910B
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용

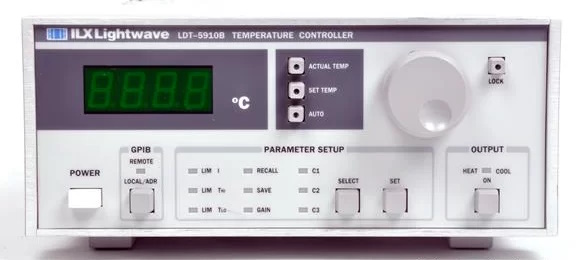

LDT-5910B
•Max Current Output: 4.6 A
•Max Output Power: 15 W (Typical)
•Display Resolution of 0.1 Degree Centigrade
•Output Current Limit Control to Safely Operate all TE Coolers
•Configurable for a Variety of Thermal Sensors
TSC-599
The RTD Temperature Sensor Converter allows an RTD or resistance temperature device to be used as a temperature feedback sensor with ILX Laser Diode Controllers and Temperature Controllers such as the LDT-5525 temperature controller, LDC-3700B Series laser diode controllers, and LDC-3900 modular laser diode controllers. The 599 is designed to be used with 100Ω, 500Ω and 1kΩ two lead RTDs. Contact ILX Lightwave for compatibility with three- and four-wire RTDs.
Size: | 22.9mm x 61mm x 96.5mm |
Weight: | 6.75oz. (191g) |
Operating Temperature: | 0°C to 50°C |
Temperature Readout Range: | -20°C to 100°C |
Temperature Readout Accuracy: | ±0.2°C |
Short-term Stability (10 minutes): | <±0.007°C |
Long-term Stability (24-hours): | <±0.015°C |
Sensor Type: | 2-wire RTD 100Ω, 500Ω, or 1kΩ |
Responsivity Calibration: | American Standard, α=0.00392 |
