제품명

High Voltage Probe

제조사

IWATSU

모델

HV-P30

가격

문의요(재고有)

렌탈

문의요

상세내용



High-voltage waveforms of up to DC 30 kV, pulse 40 kV measured by

oscilloscope

Wide bandwidth, DC to 50 MHz

Maintenance-free, due to use of silicon rubber - guarantees stable

withstand voltage

Specifications
Maximum input voltageDC 30 kV or DC + AC peak*
Single-shot pulse of 40 kV, repetitive signal
BandwidthDC to 50 MHz, within -3dB
Rise time7 ns or less
Input RC100 MW ±5% //7 pF or less
Attenuation1000:1 ±5%
Cable lengthApprox. 3 m
ConnectorBNC type
Used forOscilloscope with input RC: 1 MW, 10 to 40 pF
WeightApprox. 2.5 kg (including accessories)

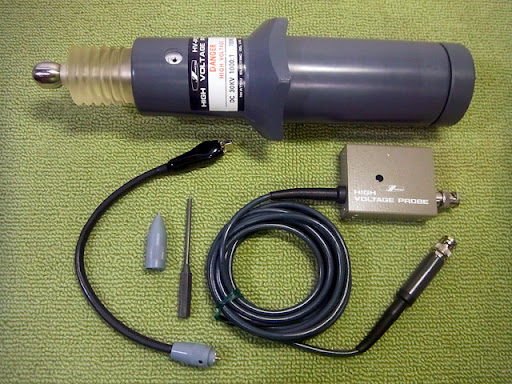

AccessoriesMatching box, clamp, probe tip, ground lead, adjusting screwdriver, accessory bag
OptionsHigh-voltage probe stand SK-301 (produced upon order)
The SK-301 can be used with both the HV-P60A/60 and the HV-P30A/30. It is attached by turning the probe bracket upside down (for HV-P60A/HV-P60/HV-P30A/HV-P30).

* The P-P voltage drops if the CW is 100 kHz or greater.

This is a passive probe that measures high-voltage waveforms by connecting to an oscilloscope, and has the following characteristics: the bandwidth is DC to 50 MHz, the maximum input is DC 30 kV, and the attenuation is 1000:1.
