제품명

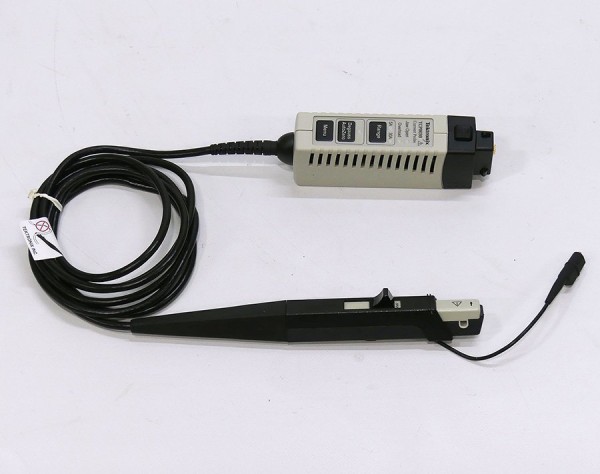

Current Probe

제조사

Tektronix

모델

TCP0030

가격

문의요(재고有)

렌탈

문의요

첨부파일

상세내용


Key features

  • Easy-to-use and accurate AC/DC current measurements
  • Intelligent communication with TekVPI™ oscilloscopes provides:

    • Units scaling and readout. Automatic, on-screen readout of amps and magnitude. Manual setup is not required. Hand calculation from volts to amps is unnecessary
    • Push button degauss and Autozero functionality
    • Probe status and diagnostic indicator LEDs
    • Remote GPIB/USB probe control
  • Split-core construction allows easy circuit connection
  • High accuracy with typically less than 1% DC gain error
  • Low noise and DC drift
  • 3rd party safety certification


Key performance specifications

  • DC to >120 MHz bandwidth
  • 30 A RMS maximum current capability
  • 50 A peak pulse current capability
  • High accuracy with typically less than 1% DC gain error
  • Accurately measures current levels as low as 1 mA


Applications

  • Power supplies
  • Semiconductor devices
  • Power inverters/converters
  • Electronic ballasts
  • Industrial/consumer electronics
  • Mobile communications
  • Motor drives
  • Transportation systems
