▷ Features & Benefits

Improve efficiency of power designs with switching loss measurements including turn-on, turn-off and conduction losses

Reduce test time with harmonic measurements to the 50th harmonic

Eliminate manual calculations with automated power analysis, waveform analysis and phase analysis with true power, reactive power, power factor, crest factor, phase relationships

Reduce measurement time with dv/dt and di/dt cursors

▷ Applications

Motor drive design and test

UPS design and test

Power semiconductor characterization

Power quality equipment design and test

Power monitoring and performance verification

Power Measurement and Analysis Software

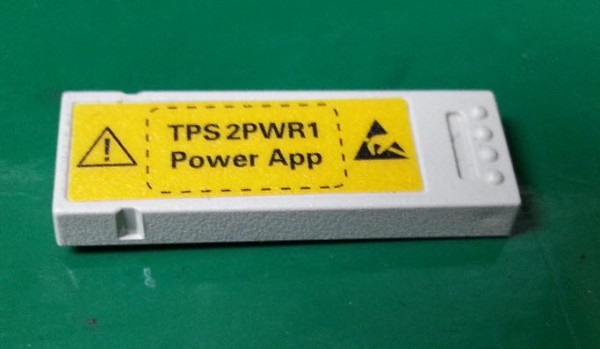

As an industrial power designer or technician, you must perform a range of power-specific measurements to develop, test, and race products to market.  The TPS2000 Series oscilloscopes, when equipped with TPS2PWR1 power measurement and analysis software, allows you to optimize your productivity by reducing your development and test time with a broad range of power-specific measurements, such as switching loss (including turn-on, turn-off, and conduction losses), harmonic distortion measurements to the 50th harmonic, and dv/dt and di/dt cursor measurements.  Use a single instrument to make an array of measurements – from measuring high voltages*1 and high currents to debugging control circuits.

To improve the efficiency of industrial power designs, you must analyze power dissipation and characterize transitions at higher switching frequencies. Using TPS2PWR1’s unique switching loss feature, you can measure switching device power dissipation with the touch of a button. Coupled with the TPS2000 Series oscilloscopes’ unique digital real-time (DRT) sampling technology, the TPS2PWR1 software package enables you to efficiently and accurately characterize industrial power systems by measuring power loss at the switching device.

Reduce your development and testing time by using TPS2PWR1’s harmonic testing capability to the 50thharmonic to test power supply designs to these standards from your bench, the power lab, or on-site.

In addition, TPS2PWR1 software enables you to set units and scale factor for Tektronix current and voltage probes to read the result in the right unit.

*1 To make floating measurements greater than 30 VRMS, use the optional P5120 passive, high-voltage probe or similarly rated passive, high-voltage probe, or an appropriately rated high-voltage, differential probe, subject to the ratings of such high-voltage probe.
