▷ Features & Benefits

Outstanding Electrical Performance

3.5 GHz and 1.5 GHz Bandwidth Models – Accurate Measurements for Serial and Digital Applications

Excellent Common Mode Rejection – Reduces Measurement Errors in Higher Common Environments

Low Capacitive and Resistive Loading – Maintains Signal Fidelity and Reduces DC Biasing Interactions

Versatile Mechanical Performance

Compact Probe Head Size for Probing Small Geometry Circuit Elements

DUT Attachment Accessories Enable Connection to Fine-spaced SMDs

Robust Design for Reliability

Easy to Use

Connects Directly to DPO7000, DPO4000, and MSO4000 Series Oscilloscopes Using TekVPI Probe Interface

Provides Automatic Units Scaling and Readout on the Oscilloscopes Display

Easy Access to Probe Comp Box Controls or Oscilloscope Probe Menu Display for Probe Status, Setup Control, and Diagnostic Information

Integrated Scope/Probe System

Direct Connection to and Powered from TekVPI™ Oscilloscope Interface (Connects directly to TekVPI scopes without the need of an external power supply, like many competitors require)

Single-button Oscilloscope Probe Menu Access

Setup and Control from Probe Comp Box or Oscilloscope User Interface

AutoZero - Zeros Out Output Offset

Remote GPIB/USB Probe Control Through the Oscilloscope (Requires TEK-USB-488 Adapter for GPIB control on DPO4000 and MSO4000)

▷ Applications

Design, Validation, Debugging, and Characterization of Common High-speed Serial Bus Designs:

I2C

CAN/LIN

SPI

Serial ATA

Ethernet (GbE)

USB 2.0

FireWire (1394b)

Signal Integrity, Jitter, and Timing Analysis

Manufacturing Engineering and Test

Differential Probes - A Better Measurement Tool

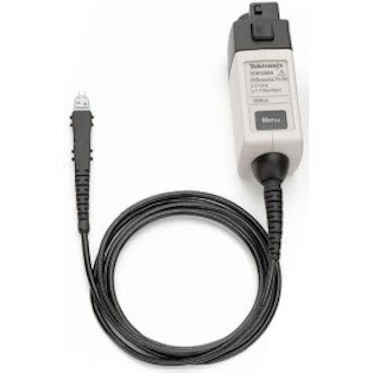

Differential active probes provide truer signal reproduction and fidelity for high-frequency measurements. With ultra-low input capacitance and versatile device-under-test connection capabilities, the TDP1500 and TDP3500 Differential-ended Active probes provide excellent high-speed electrical and mechanical performance required for today’s digital system designs.

Specifically designed for use and direct connection to the TekVPI™ probe interface used on the DPO7000, DPO4000, and MSO4000 Series oscilloscopes, the TDP1500 and TDP3500 Differential probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional problems:

DUT loading effects - Are reduced by lower input capacitance and high input resistance

DUT connectivity - A variety of accessories exist for attaching to small SMDs, some come standard or recommended

Maximizing of system (oscilloscope and probe) bandwidth - probing solutions for all measurements for TekVPI interface oscilloscope models up to 3.5 GHz
