▷ Features & Benefits

Outstanding Electrical Performance

≥1.5 GHz Probe Bandwidth

<267 ps Rise Time

≤1 pF Input Capacitance

1 MΩ Input Resistance

-8 V to +8 V Input Dynamic Range

-10 V to +10 VDC Input Offset Range

Versatile Mechanical Performance

Small Compact Probe Head for Probing Small Geometry Circuit Elements

DUT Attachment Accessories Enable Connection to SMDs as Small as 0.5 mm Pitch

Robust Design for Reliability

Easy to Use

Connects Directly to DPO7000 and DPO/MSO4000 Series Oscilloscopes Using the TekVPI™ Probe Interface

Provides Automatic Units Scaling and Readout on the Oscilloscope Display

Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information, and to Control Probe DC Offset

▷ Applications

High-speed Digital Systems Design

Component Design and Characterization

Manufacturing Engineering and Test

Educational Research

Signals with Voltage Swings up to 16 Vp-p

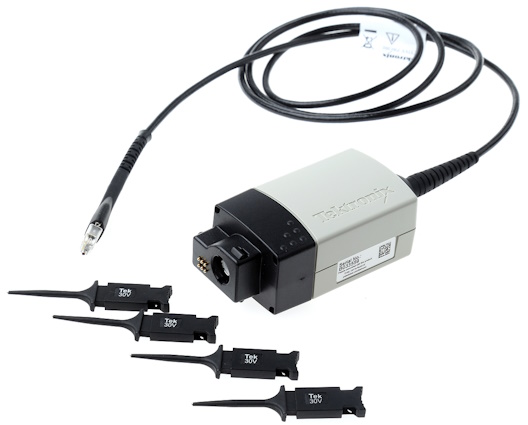

TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today’s digital system designs. Specifically designed for use and direct connection to the TekVPI™ probe interface used on Tektronix' new DPO7000 and DPO/MSO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:

Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance

Versatile DUT connectivity for attaching to small SMDs

Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO/MSO4000 Series Oscilloscope models, up to 1 GHz
