▷ Features & Benefits

<120 ps Rise Time (Guaranteed)

4 GHz Bandwidth

Small Form Factor Probe Head

Direct Access to SMDs

Oscilloscopes Supported: TDS/CSA7000 Series

Probe Interfaces: TekConnect™ Interface

▷ Applications

High-speed Digital Systems Design

Component Design/Characterization

Signal Integrity, Jitter and Timing Analysis

Manufacturing Engineering and Test

Signals with Voltage Swings up to 8 Vp-p

Measures 3.0 V Logic, InfiniBand, PCI Express, DDR, Rambus Data Lines, Gigabit Ethernet

Selecting the right probe for your application is key to attaining the best signal fidelity in your measurements. Active probes provide truer signal reproduction and fidelity for high-frequency measurements. Tektronix provides you a wide range of 4 GHz active probes to select from for your application.

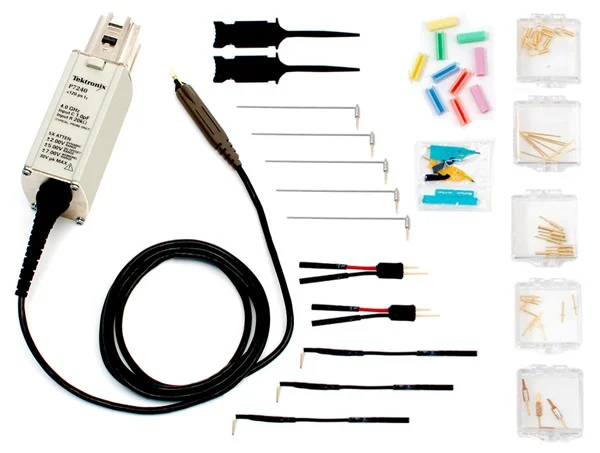

TekConnect Interface - P7240

The P7240 with TekConnect interface is a high-performance active probe with high bandwidth and low-capacitive loading to make it the probe of choice for demanding design applications, such as Rambus, DDR DRAM and AGP. This probe and others in the family are also suited for applications in the communication industry, for measurements on Fibre Channel and Gigabit Ethernet. With the TekConnect interface, you can be assured that maximum signal integrity is maintained to meet present and future bandwidth needs.

Specifications

Rise Time: <120 ps

Bandwidth: 4.0 GHz

Attenuation: 5X

DC Resistance: 20 kΩ

Input Capacitance: <1 pF

Dynamic Range: ±2 V

Offset Range: ±5 V

Interface: TekConnect™
