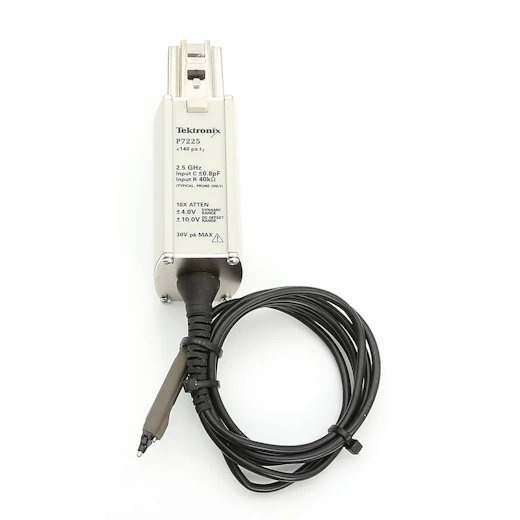

Features:

< 140 ps Rise Time (guaranteed)

2.5 GHz Bandwidth

< 0.8 pF Input Capacitance

8 Vp-p Dynamic Range

40 kW Input Resistance

TekConnect™ Interface

Supports TDS7154/7254 Active Probe Needs By Providing a TekConnect 2.5 GHz, 8 Vp-p Dynamic Range Cost Effective Probing Solution for Mid-band Real-time Oscilloscopes

10X Attenuation

Applications:

Verification, Debug and Characterization of High-speed Designs

Design, Development and Compliance Testing

Signal Integrity, Jitter and Timing Analysis

Manufacturing Engineering and Test

Signals with Voltage Swings up to 8 Vp-p
