Inputs

FX106: 6 channels

Measurement interval:

FX106: 1 s/2 s

Inputs: VDC(DC voltage), TC (thermocouple), RTD (resistance temperature detector), DI (digital input for event recording),

        DCA (DC current with external shunt resistor attached)

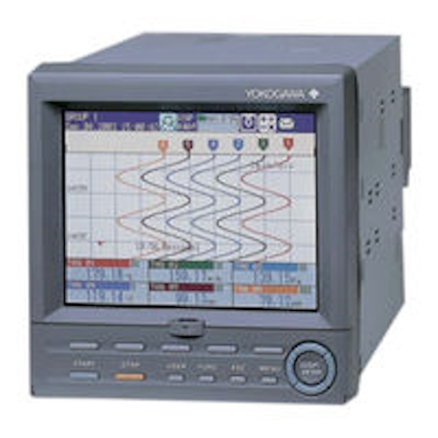

• 5.5’’ TFT color LCD display with wide viewing angle
• Trend, digital, bar, overview, information, and historical displays
• 4 display groups and 6 channels per group: Freely assignable measurement and mathematical channels
• Universal input and optional inputs (pulse and Pt1000 input)
• Up to 50 VDC direct input, no need of external voltage divider
• Up to 12 analog input channels

• Measurement interval:

  • FX103: 250 ms
  • FX106, FX112: 1 s and 2 s
• Interactive setup with Key panel’s navigation keys means easy operation Dust-proof and Water-proof (IP65)
• Easy analysis of data on a PC
