제품명

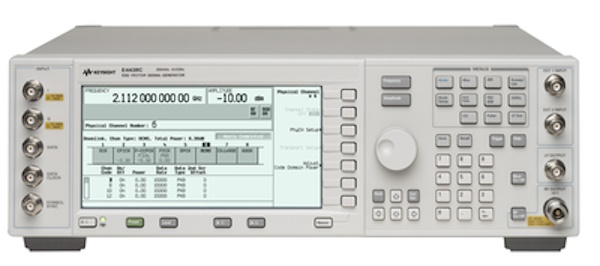

ESG Vector Signal Generator
제조사
HP/Agilent/KEYSIGHT
모델
E4438C
가격
문의요
렌탈
문의요
첨부파일
상세내용
* Frequency range 250 kHz to 6 GHz
* Output power up to +17 dBm
* RF modulation bandwidth up to 160 MHz
* Flexible FSK, MSK, PSK, QAM, custom I/Q, AM, FM, ØM, and pulse
* Step & list sweep frequency and power
* Internal baseband generator (80 MHz RF BW)
* Arbitrary I/Q waveform playback (up to 100 MSa/s)
* Up to 64MSa playback memory and 1 GSa storage
* Real-time I/Q symbol generation (up to 50 Msym/s)
* Generate 802.11 WLAN, W-CDMA, cdma2000, 1xEV, TD-SCDMA, GSM, EDGE,
cdmaOne, multitone, and more
* Remote control over 10BaseT LAN and GPIB
* SCPI and IVI-COM drivers
