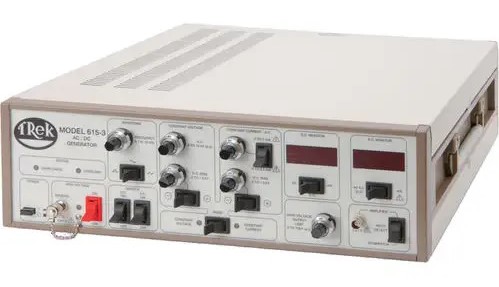

TREK MODEL 615-3
10 KV pp HIGH-VOLTAGE AC/DC GENERATOR

◦AC Voltage Range (DC bias is zero): 0 to 10 kV peak-to-peak.
◦DC Bias (AC voltage is zero): 0 to ±5 kV DC
◦AC Voltage + DC Bias: 0 to ±5 kV peak
◦AC Current (DC current is zero): 0 to ±5 mA average
◦DC Current (AC current is zero): 0 to 8 mA DC
◦AC + DC Current: 0 to ±8 mA peak

◦Frequency (Internal Generator): 100 Hz to 10 kHz

The Trek Model 615-3 is a precision high-voltage AC/DC generator
that can be used in constant voltage, constant current or external
amplifier mode. It is specifically designed to simultaneously provide
the AC and DC operating potentials required to operate/control an
electrostatic charger roller and offer features such as four-quadrant
output, high rejection of load current noise and three wave output
shapes.

The Model 615-10 has the same features with a 20 kV peak-to-peak
capability.

Applications

◦Dielectric charge material characterization
◦Polymer and ceramic corona charging
◦Piezoelectric driving and control

Features and Benefits
◦Monitor and control photoreceptor charging current with very high accuracy
◦Four-quadrant output extends frequency response
◦Operator-selectable sine, square or triangle wave output shape
◦NIST-traceable Certificate of Calibration provided with each unit
