제품명

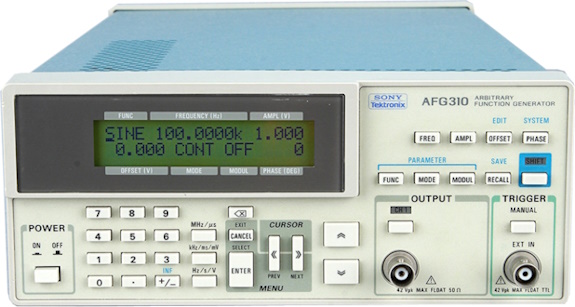

Arbitrary Function Generator
제조사
TEKTRONIX
모델
AFG310
가격
문의요
렌탈
문의요
첨부파일
상세내용
Specifications
| Output Channels | |
| AFG310 | 1. |
| AFG320 | 2. |
| Standard Waveforms | Sine, Square, Triangle, Ramp, Pulse, DC and Noise. |
| Arbitrary Waveforms | |
| Waveform Length | 10 to 16384 points. |
| Vertical Resolution | 12-Bit. |
| Sample Rate | 16 MS/s. |
| Nonvolatile Memory | Four 16 k waveforms. |
| Output Frequency | |
| Sine, Square | 0.01 Hz to 16 MHz. |
| Triangle, Ramp, Pulse | 0.01 Hz to 100 kHz. |
| Noise (Gaussian) | Maximum 8 MHz bandwidth. |
| Arbitrary Waveform | |
| Repetition Rate | 0.01 Hz to 1.6 MHz. |
| Resolution | 7 digits. |
| Accuracy | 50 ppm. |
| Output Characteristics | |
| Amplitude (into 50 Ohm) | 50 mVp-p to 10 Vp-p. |
| Accuracy | ±(1% of setting + 5 mV) at 1 kHz, no offset. |
| Flatness (at 1 V amplitude relative to 1 kHz) | < 100 kHz: ±1%. 100 kHz to 1 MHz: ±1.5%. 1 MHz to 16 MHz: ±3%. |
| Offset (into 50 Ohm) | 505 mVp-p to 10 Vp-p amplitude: peak amplitude + offset is limited to +5 V or -5 V. |
| 50 mVp-p to 500 mVp-p amplitude | -0.75 V to +0.75 V. |
| Accuracy | ±(1% of setting +5 mV). |
| Resolution | 5 mV. |
| Output Impedance | 50 Ohm. |
| Isolation | 42 V peak maximum relative to earth ground. |
| Phase | |
| Range | ±360°. |
| Resolution | 1°. |
| Sine Wave Spectral Purity | |
| Harmonic Distortion | |
| DC to 20 kHz | -70 dBc. |
| 20 kHz to 100 kHz | -60 dBc. |
| 100 kHz to 1 MHz | -45 dBc. |
| 1 MHz to 16 MHz | -35 dBc. |
| Total Harmonic Distortion | |
| 20 kHz | 0.05% at 1 V amplitude. |
| Signal Characteristics | |
| Square | |
| Rise/Fall Time | <20 ns. |
| Overshoot | < 2%. |
| Pulse | |
| Rise/Fall Time | < 100 ns. |
| Duty Cycle | 1% to 99% of period. |
| Triangle, Ramp, Pulse, Arbitrary | |
| Jitter | 2 ns at 100 kHz. |
| Modulation | |
| AM | |
| Source | External only. |
| Carrier | Up to 16 MHz. |
| Modulation | Any internal waveform plus Arb. |
| Frequency | DC to 200 kHz. |
| Depth | |
| 1 V | 100%. |
| 0 V | 50%. |
| -1 V | 0%. |
| 2 Vp-p for 100% modulation. | |
| FM | |
| Source | Internal only. |
| Modulation | Sine, Square, Triangle, Arb. |
| Frequency | 0.01 Hz to 10 kHz. |
| Deviation | 0.01 Hz to 8 MHz. |
| FSK (frequency shift keying) | |
| Source | Internal only. |
| Mode | Trigger, Burst. |
| Frequency range | 0.01 Hz to 16 MHz. |
| Key rate | 0.01 Hz to 50 kHz. |
| Number of keys | 2. |
| Frequency Sweep - | |
| Type | Linear or logarithmic. |
| Direction | Up or down. |
| Start/Stop Frequency | 0.01 Hz to 16 MHz. |
| Time | 1 ms to 100 s. |
| Mode | Continuous, Trigger, Burst. |
| Operating Mode - | |
| Continuous | The selected waveform is output continuously. |
| Triggered | One period of the selected waveform is output each time a trigger occurs. |
| Trigger source | Manual, External. |
| Burst | The selected waveform is output with a specified number of cycles each time a trigger occurs. |
| Carrier Frequency | Up to 1 MHz. |
| Count | 1 to 60,000 cycles/burst (100 s maximum except sine wave or square wave) or infinite. |
| Start phase | -360 to +360°. |
| Trigger source | Manual, External. |
| Inputs/Outputs - | |
| Front Panel | |
| Main output | Ch 1, Ch 2 (AFG320 only). |
| External Trigger (Burst) input | |
| TTL input. | |
| Pulse Width | 1 µs minimum. |
| 10 kilohm input impedance. | |
| Rear Panel | |
| Sync Output | TTL level. |
| External AM modulation | 2 Vp-p = 100% modulation. 10 kilohm input impedance. |
| GPIB Interface (IEEE 488.2). | |
| Memory | |
| Type | Nonvolatile. |
| Setup Storage | 20. |
| Arbitrary Waveform Storage | 4. |
| Environmental, EMC, Safety | |
| Temperature Range - | |
| Operating | 0° to +50° C. |
| Nonoperating | -20° to +60° C. |
| Humidity-Operating | At or below +40° C: 0 to 95%. +40° to +50° C: 0 to 75%. |
| Random Vibration | |
| Operating | 0.31 GRMS from 5 to 500 Hz, 10 minutes. |
| Nonoperating | 2.46 GRMS from 5 to 500 Hz, 10 minutes. |
| Shock | Nonoperating: 294 m/s2 (30 G), half-sine, 11 ms duration. |
| EMC Compliance | Meets intent of Directive 89/396/EEC for Electromagnetic Compatibility. |
| Australian AN/NZS 2064.1/2. | |
| Safety | UL1244, CSA231, EN61010-1, IEC61010-1. |
| Power | |
| Line Voltage | 90 to 132 V AC, 180 to 250 V AC. |
| Line Frequency | |
| 90 to 250 V | 48 to 63 Hz. |
| 90 to 127 V | 48 to 440 Hz. |
