제품명

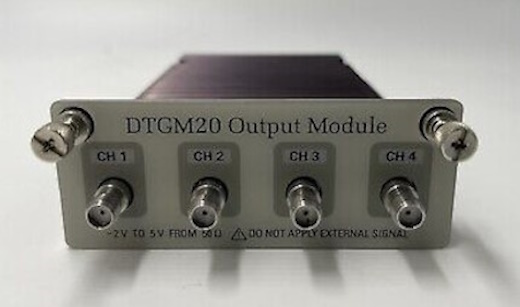

Output Timing Module for the DTG5000 Series
제조사
TEKTRONIX
모델
DTGM20
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
- 4 single-ended (installed in DTG5078)
- 2 single-ended (installed in DTG5274)
- 4 SMA connectors
- Specifications:
- Transition timies : < 340 ps (VOL = 0.0, VOH = 1.0) (typ)
- Transition times: < 760 ps (VOL = -1.0, VOH = 2.0) (typ)
- Amplitude Resolution: 0.1 to 3.5 Vp-p/5 mV (into 50 ohm)
- Amplitude Resolution: 0.2 to 7.0 Vp-p/5 mV (into 1 M ohm)
- DC accuracy: +/-50 mV into 50 ohm to GND
- Typical Logic supported: TTL, CMOS, (P)ECL, LVPECL
