AEDFA-L-DWDM

AEDFA-L-EX1-DWDM

AEDFA-L-EX2-DWDM

Remark

Saturation Output Power

+22dBm

+22dBm

+22dBm

-

Wavelength

1570 - 1603nm

1570 - 1610nm

1570 - 1620nm

-

Gain (dB)

21

25

30

21

25

30

21

25

-

Input Power (dBm)

+1

-3

-8

Noise Figure (typ.)

6.0dB

6.0dB

6.5dB

Gain Flatness (peak to peak)

Typ. 1.0, Max. 2 (dB)

Typ. 1.0, Max. 2 (dB)

Typ. 1.0, Max. 2 (dB)

Input & Output Isolation

> 30dB

-

Polarization Dependent Gain

Typ. 0.3dB, Max. 0.5dB

-

Control Mode

ACC, APC, AGC(optional)

-

Parameters

Unit

Specifications

Operation Temperature

^oC

0 to +40

Storage Temperature

^oC

-10 to +70

Power Supply

VAC

90 – 240, 47 – 63Hz

Dimensions

mm

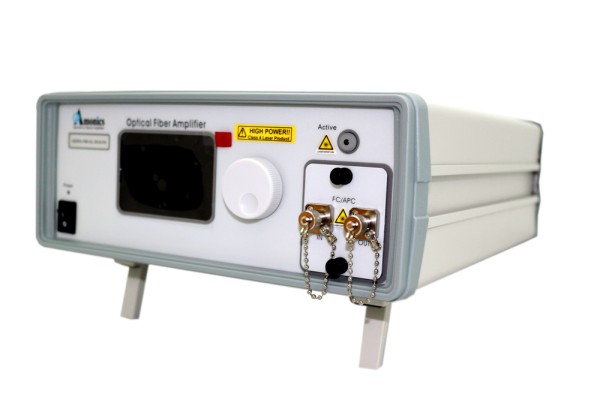

Benchtop: 260(W) x 330(D) x 120(H)

1U Rackmount: 485(W) x 360(D) x 45(H)

Other standard rackmount sizes are also available

Mechanical Safety Control

-

Key-lock switch, BNC interlock key

Optical Power Monitoring

-

Output power, Input power (optional)

Remote Control Port

-
