Product Description

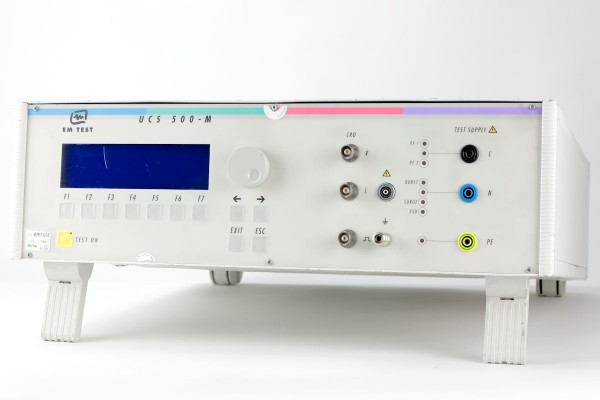

The UCS500-M4 ultra-compact simulator is the most versatile tester to cover transient and power fail requirements according to international standards (basic and generic standards) and product/product family standards. For example:

IEC61000-4-4 Immunity to Fast Transient(EFT)/Burst (4.4KV)

IEC61000-4-5 Immunity to Surge (CWG) Pulses and (4KV)

IEC61000-4-11,4-29 Immunity to Dips, Interrupts on the ac supply lines. (250V/16A, 16~500Hz)

IEC61000-4-8  50/60Hz Magnetic Field

IEC61000-4-9  Pulse magnetic field

The UCS500-M4 is the most economic solution for tests during development as well as for full-compliant transient immunity tests and CE Marking for single phase or DC EUT's.

Optional CDNs and Adaptors

EM-Test CNV 508 Surge Coupling Network

EM-Test V4070 Variable Transformer

EM-Test 13amp-to-4mm Socket Adaptor Network (in with 5911)

Schaffner CDN 125 Capacitive Coupling Clamp

EMCH Component Test Lead

EM-Test CNV 504N Coupling Network

A 13 amp standard mains outlet ( seen in photo) with 4mm plugs at its rear connects to the front panel of the UCS-500 allowing an EUT to be powered up normally. Then a set of coloured leads on 4mm protected plug ends carrying the mains voltage plugs into the rear of the UCS 500 allowing synchronization for the various types of malfunction that the UCS 500 will introduce on the line viz.61000-4-X. Basically, the EUT is powered from the 13A socket as shown in picture with the control leads plugging into the UCS-500
