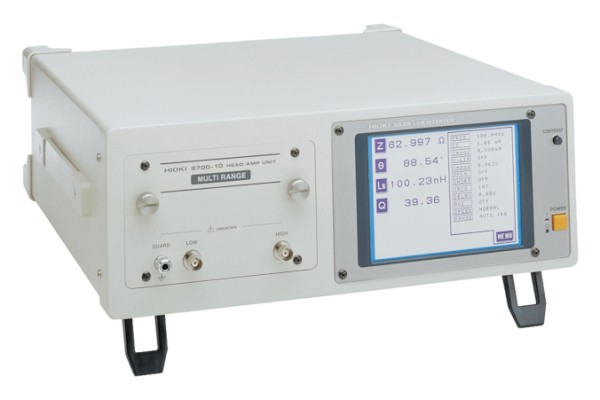

Features:
- Broad Frequency Measurement Range: 100kHz to 120MHz
- 6-millisecond Minimum Measurement Time
- 14 Parameter Types
- Adjust for Conditions While Measuring
- Store Measurement Data
- Zoom Display
- BIN (Classification) Measurement
- Continuous Measurements
- Load Compensation Function
- For Changing Production Lines
- Simultaneously Measure up to 4 Parameters
- Correlation Compensation Function
specifications
| Measurement parameters | |Z|, |Y|, θ, Rp, Rs (ESR), G, X, B, Cp, Cs, Lp, Ls, D (tanδ), Q | |||||
|---|---|---|---|---|---|---|
| Measurement range | 1 k/10 k/100 kΩ (Depend on the 9700-10, All parameters defined by |Z|) | |||||
| Extent of measurement impedance (Note: All measurement ranges except for |Z| are for reference only) | 1 kΩ range | 10 kΩ range | 100 kΩ range | |||
| Z, R | 100 mΩ to 2 kΩ | 1 kΩ to 20 kΩ | 10 kΩ to 300 kΩ | |||
| C | 0.66 pF to 15.9 μF | 0.066 pF to 1.59 nF | 4.4 fF to 159 pF | |||
| L | 0.133 nH to 3.18 mH | 1.33 μH to 31.8 mH | 13.3 μH to 477 mH | |||
| θ | -180.00° to 180.00° | |||||
| Basic accuracy | |Z|: ±0.5 % rdg., phase angle: ±0.3° (typ.) | |||||
| Measurement frequency | 100 kHz to 120 MHz (100 Hz to 100 kHz steps) | |||||
| Measurement signal level | 5 mV to 1 V, 20 mA max. (100 kHz to 10.00 MHz) 5 mV to 500 mV, 10 mA max. (10.01 MHz to 120 MHz), (1 mV steps) 200 µA to 20 mA: 1 V max. (100 kHz to 10.00 MHz) 200 µA to 10 mA: 0.5 V max. (10.01 MHz to 120 MHz), (10 µA steps) | |||||
| Output impedance | 50 Ω (at 100 kHz) | |||||
| Display | LCD with backlight display, 99999 (3, 4, or 5 digits unit setting possible) | |||||
| Measurement time | 6 ms (nominal) | |||||
| DC bias | N/A | |||||
| Functions | Load compensation function, Classification (BIN) Measurement, Comparator, Averaging, External input/Output (EXT. I/O), GP-IB or RS-232C interface | |||||
| Power supply | 100V to 240 V AC, 50/60 Hz, 50 VA max. | |||||
| Dimensions and mass | 360mm (14.17in) W × 130mm (5.12in) H × 360mm (14.17in) D, 8.3kg (292.8oz) | |||||
| Included accessories | Quick start manual × 1, Instruction manual × 1, Power cord × 1 | |||||
