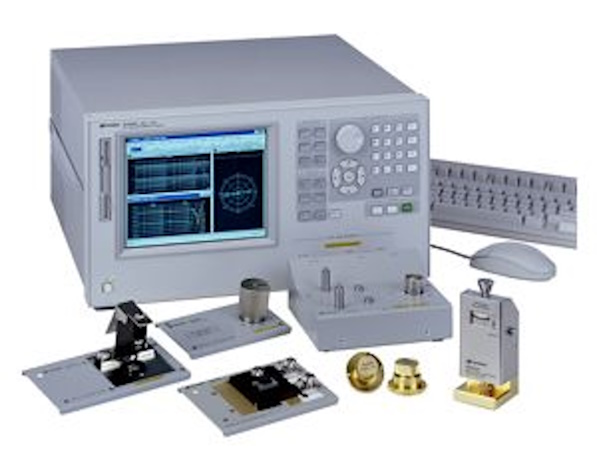

Description
* High-accuracy and easy measurement.
* Basic impedance accuracy is ±0.8%.
* Sweeps frequency from 1 MHz to 1.8 GHz with 1 mHz resolution.
* 1.8 meters error-less cable connects the analyzer.

Key Features & Specifications
* Four component test fixtures (DUT size: 0.5 mm to 20 mm)
* Independent parameter selection in 2 channels
* Direct read-out permittivity, permeability (option)
* Two material fixtures (operating temperature: -55deg C to +200deg C)
* Versatile analysis (temperature, cole-cole plot, relaxation time)
* Sweep parameters (frequency, ac level, dc bias, temperature)
