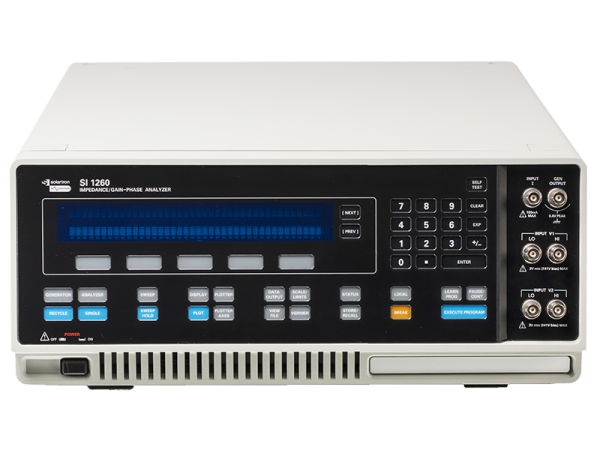

Impedance Analyzer SI1260

제조사

SOLARTRON

모델

SI1260

가격

문의요(재고유)

렌탈

문의요

(개요)
1260A FRA 단독 사용 가능
10uHz ~ 32MHz 임피던스 측정

(응용)
고체 전해질의 개발 평가
- 고분자, 세라믹스 고체 전해질 및 그 응용제품
- 고체 전해질 연료전지, 태양전지

유전재료의 평가
- 전해 콘덴서 특성평가
- 고분자유전재료

도전재료의 평가
- 각종 일차전지, 2차전지, 전극 재료의 개발 평가
- 고감도 센서의 연구

반도체 재료의 평가
- 복사기, 마이크로필름의 감광제

Specifications

Generator	Voltage	Current mode
ac Amplitude ≤10MHz >10MHz	0 to 3V rms 0 to 1V rms	0 to 60mA rms 0 to 20mA rms
Maximum ac resolution	5mV	100µA
dc bias range	±40.95V	±100mA
Maximum dc resolution	10mV	200µA
Frequency	range:10µHz to 32MHz, max resolution: 10µHz frequency (log or lin) ac/dc voltage, ac/dc current
Sweep types	frequency (log or lin) ac/dc voltage, ac/dc current
Maximum voltage	hi to lo: ±46v peak, lo to ground: ±0.4V peak
Maximum current	±100mA peak
Impedance	lo to ground: 100kΩ, <10nF
Connection	single BNC, floating shield
Output disable	contact closure or TTL logic 0

Input System	Voltage (2x)	Current
3 independent analyzers operating in parallel
Ranges	30mV, 300mv, 3V	6µA, 60µA, 600µA, 6mA, 60mA
Maximum resolution	1µV	200pA
Full Scale Peak	±5V	±100mA
Inputs projected to	±46V	±250mA
Connections	single/differential BNC	single BNC
Shields	floating/grounded	-
Coupling	dc or ac (-3dB at 1Hz)	dc or ac (-3dB at Hz)
Input impedance
Hi to shield	1Mohm, <35pF	≥600µA range, 1Ω
Shield to ground	10kohm, 330pf	<600µA range, 50Ω
Limits of error		Ambient temperature 20±10ºC, integration time >200ms. Data valid for one year after calibration.
Results
Variable		frequency, ac amplitude, dc bias
Measured parameters		voltage gain, phase, real, imaginary, Z, R, X, Y, G, B, V, I group delay, C, L, Q, D
Power supply		90 to 126v, 198 to 252v, 48 to 65Hz
Power consumption		230VA
Dimensions (w x h x d)		432mm x 176mm x 573mm (17in x 6.93in x 22.56in)
Weight		18kg (40lbs)
Operating temp. rate		0 to 50ºC (32 to 122ºF)
Limit of error Gain-phase measurments		Applies to all ranges at >10% full scale
